HSL 156

 Post Reply Post Reply Page  12>
Author
Message
dakota View Drop Down
Newbie
Newbie


Joined: 01 April 2008
Location: England
Status: Offline
Points: 2
Post Options Post Options   Thanks (0) Thanks(0)   Quote dakota Quote  Post ReplyReply Direct Link To This Post Topic: HSL 156
    Posted: 01 April 2008 at 4:23pm

  Hello all,

     I am a new member (although a senior citizen) who has been aeromodelling since the 1940's but now find that the weather is not compatable very often for this hobby, consequently I have now turned my modelling to boats.

Iam building a 1/24th scale RAF Air/Sea rescue launch (Deans Marine model) but I am making it a replica of HSL 156 which I have made contact with the Wartime Captain's son and also the son of a B.17 pilot from Cheveston (305 BG USAF) which crash into the North Sea and was picked up by HSL 156 in a mine field.

If anyone has any details of where this boat was stationed or other information I would be very grateful as I wish to make this model a true replica ( it is radio controlled and electric powered ) and I hope to use it at the Wicksteed Park Model Boat Club when complete)

Best Regards to you all

dakota

dakota
Back to Top
ForumManager View Drop Down
Admin Group
Admin Group

ForumManager

Joined: 06 December 2004
Location: United Kingdom
Status: Offline
Points: 19
Post Options Post Options   Thanks (0) Thanks(0)   Quote ForumManager Quote  Post ReplyReply Direct Link To This Post Posted: 01 April 2008 at 5:09pm

Hello 'dakota'

Welcome aboard. I am sure that there will be some assistance to your query's - there are a couple of very knowledgeable RAF (or ex RAF I should say ) marine enthusiasts here. Keep dropping back - you will be answered.

Regards

Forum Manager
Back to Top
Christian View Drop Down
Senior Member
Senior Member


Joined: 17 June 2005
Location: Gibraltar
Status: Offline
Points: 757
Post Options Post Options   Thanks (0) Thanks(0)   Quote Christian Quote  Post ReplyReply Direct Link To This Post Posted: 01 April 2008 at 7:01pm

Hi Dakota







These photos of HSL 156 are available at the IWM.

HSL 156 was taken on charge in Jan 1941, and transferred to the Admiralty for disposal at Dumbarton in October 1946. Hopefully RAFWEBFOOT can fill us in on the intervening years.

Back to Top
rafwebfoot View Drop Down
Senior Member
Senior Member


Joined: 15 May 2007
Location: Scotland
Status: Offline
Points: 111
Post Options Post Options   Thanks (0) Thanks(0)   Quote rafwebfoot Quote  Post ReplyReply Direct Link To This Post Posted: 02 April 2008 at 4:27pm

HSL.156

On Charge 22/1/42 at Calshot

Allotted to N0.28 ASRU Tenby August 1942

Allotted to Brighton (Horsham) 12/9/42

Allotted to No.53 ASRU Fleetwood (Squiresgate) 5/9/44

Allotted to 213 MU 22/2/45

Shown in CC Census 31/12/45

To Admiralty for disposal 10/10/46.



FAIR WINDS AND A FAVOURABLE TIDE
Donald
Back to Top
dakota View Drop Down
Newbie
Newbie


Joined: 01 April 2008
Location: England
Status: Offline
Points: 2
Post Options Post Options   Thanks (0) Thanks(0)   Quote dakota Quote  Post ReplyReply Direct Link To This Post Posted: 03 April 2008 at 1:51pm

   Hi Groupie many thanks for the details

   Keep the trade winds blowing.

  dakota

dakota
Back to Top
skaramanga View Drop Down
Newbie
Newbie


Joined: 09 December 2007
Location: Greece
Status: Offline
Points: 7
Post Options Post Options   Thanks (0) Thanks(0)   Quote skaramanga Quote  Post ReplyReply Direct Link To This Post Posted: 23 February 2009 at 7:18pm
Hi there.
Since I'm also building a model of the HSL 156,the 1/72 Airfix kit,and I have a few questions,if someone knows:

- Was the superstructure of this particular boat painted yellow at some point of her career,or it was  gray from the start?

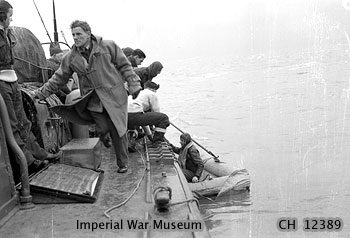

- In the middle photo that Christian has posted, No CH 12389,there is a pipe that runs beside the sick bay door,and over the deck house.Does anyone knows what was this pipe for and were does it ends?
-At the same photo,there is a box,right after the sick bay door.Is this the port side's ammunition box,or it has some other use?

I will appreciate  any help,
Regards,
Constantinos
Back to Top
Christian View Drop Down
Senior Member
Senior Member


Joined: 17 June 2005
Location: Gibraltar
Status: Offline
Points: 757
Post Options Post Options   Thanks (0) Thanks(0)   Quote Christian Quote  Post ReplyReply Direct Link To This Post Posted: 23 February 2009 at 8:00pm
My guess is early configuration; yellow decks/superstructure and short gooseneck vents for the fuel tanks, and later on dark grey decks/superstructure and up and over type tank vents. I think the ready use locker was further aft, I think the box in the photo above may be a crash box with emergency first aid items which has come up from the sickbay below.
Back to Top
skaramanga View Drop Down
Newbie
Newbie


Joined: 09 December 2007
Location: Greece
Status: Offline
Points: 7
Post Options Post Options   Thanks (0) Thanks(0)   Quote skaramanga Quote  Post ReplyReply Direct Link To This Post Posted: 23 February 2009 at 9:06pm
That was really quick Christian!! Thank you!
If your guess is right,my 156 is wrong......
I have used the short gooseneck vents and I'm going to depict her in a later configuration,as she was in '43,gray deck and superstructure,D/F Loop antenna,etc.
I knew nothing about the later vents....
Anyway,I can live with that......I think....

Thanks again,
Constantinos

Back to Top
dakota3 View Drop Down
Newbie
Newbie


Joined: 11 March 2009
Location: East of england
Status: Offline
Points: 2
Post Options Post Options   Thanks (0) Thanks(0)   Quote dakota3 Quote  Post ReplyReply Direct Link To This Post Posted: 13 March 2009 at 11:46am

Cool     Hi Constantinos

         The colours for HSL 156 are as follows (1943 era)

         Superstructure       Ford Polar Grey   Humbrol paint no. 79
         Hull above water-line  semi-gloss black                    no.21
         Underwater Rover ember glow                                 no.70
         Deck    RAF Mid Blue                                                  no.96
         Bollards  Mercury Grey                                              no.34
         Fairleads   Mercury Grey                                           no.34
         Gun Mountings     Polar Grey                                    no.147
         Lifebelts    White / or Red & Orange
         Fore Mast   Black                                                       no.33
         Fore Mast  (to bridge level)  Polar Grey                     no.147
         Top Mast     White
         Flak Padding   Matt Dark Grey                                   no.224
         Prpeller         Bronze

        My Model HSL 156 is complete and has been used on the local
        model boat lake with great success

        dakota 3








BAB
Back to Top
john allsop View Drop Down
Newbie
Newbie


Joined: 13 May 2009
Location: manitouwadge on
Status: Offline
Points: 8
Post Options Post Options   Thanks (0) Thanks(0)   Quote john allsop Quote  Post ReplyReply Direct Link To This Post Posted: 14 May 2009 at 2:44am
I am also another "new" member. My HSL 156 has a yellow deck as shown in the painting by Steve Farrow. Incidentially i have had the model for a few years and the turret domes are not glazed, any ideas about obtaining domes or simple DIY glazing. . I made my model from the John Pritchard plan.
JOHN
Back to Top
